"Best trailer" for low-clearance equipment is a question that usually has three answers, not one, and the right one depends on your specific machine, weight, and load frequency. Wisconsin renters call us with everything from lowered project cars to compact scissor lifts to commercial zero-turns, and every one of those loads needs a different answer. This guide compares the three real options — Air Tow ground load, tilt deckover, and standard utility trailer — across the specific low-clearance loads we see most often, with the approach-angle math to back the recommendations.
The Three Real Options

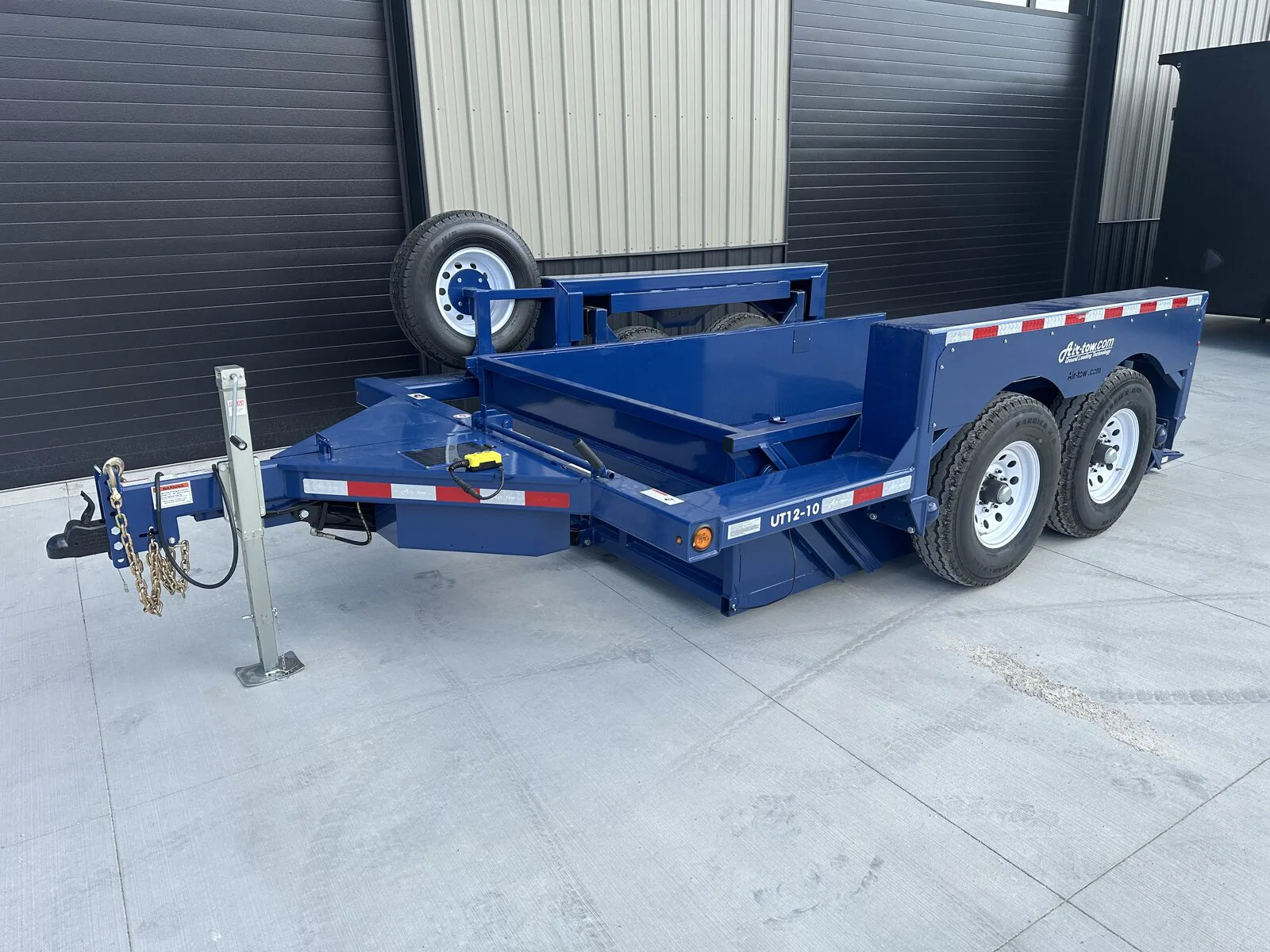

Air Tow (Ground Load)
Air suspension drops the deck to ground level. Approach angle: zero. Deck around 6.5x14 feet, payload 9,885 lbs, GVWR 13,535 lbs. Wireless remote for suspension control. The unambiguous best answer whenever the deck can drop to the ground and the load fits the payload and dimensions.
Tilt Deckover
Hydraulic tilt drops the tail of the deck to ground level while the front stays elevated. Approach angle: 8-11 degrees depending on trailer length. Deck 8.5x24 feet, payload around 10,000 lbs, GVWR 14,000 lbs. Wider deck, longer bed, better for oversized or multi-item loads.
Standard Utility Trailer
Fixed 22-inch deck with fold-down ramps. Approach angle: 17-24 degrees depending on ramp length. Deck 6x12 or 18-foot, payload 2,000-4,000 lbs. Cheap and quick for anything with normal clearance, but it's the wrong trailer for a genuinely low load.
The Approach Angle Math
Every machine has a published or measurable approach angle — how steep an incline the front can climb before something touches. Compare that angle to the trailer's ramp angle:
- Utility with 4-foot ramp: 24-degree approach. Only suitable for high-clearance loads.
- Utility with 6-foot ramp: 17 degrees. Fine for stock trucks and SUVs. Marginal for sports cars.
- Car hauler with 6-foot ramp and drop tail: 12-14 degrees. Fine for most cars. Not enough for lowered vehicles or low equipment.
- Tilt deckover: 8-11 degrees. Handles almost anything except the very lowest project builds.
- Air Tow: 0 degrees. Handles everything, including dead loads on pallet jacks.
Simple test: lay a straightedge from the ground to the trailer deck. If any part of your machine (bumper, exhaust, spoiler, deck) sits below that line at the point where the ramp lifts off the ground, the machine will scrape or bind. Time to go up one trailer category.
Specific Load Recommendations
Scissor Lifts (Genie GS-1930, JLG 1930ES, Skyjack SJIII 3219)
Best: Air Tow. These lifts sit 6-8 inches off the ground stowed and are 5.5-6.5 feet long. They fit the Air Tow deck perfectly and the payload is well within limits. The tilt deckover works too, but the Air Tow is faster and cheaper for a single lift.
Lowered Sports Cars and Project Cars
Best: Tilt deckover. Sports cars often exceed the Air Tow's 6.5-foot deck width and the 8.5-foot tilt deckover deck is the right fit. Approach angle at 8-11 degrees clears most lowered vehicles. Non-runners load with the included wireless-remote winch.
Commercial Zero-Turn Mowers (60"-72" decks)
Best: Air Tow. Details in the zero-turn mower guide. Ground load eliminates the caster-catch and deck-drag problems on ramps.
Golf Carts
Best: Air Tow. Hard tires plus weak brakes plus low body panels = ramp problem. See the golf cart guide and the loading procedure.
Portable Generators and Compressors on Pallets
Best: Air Tow. A pallet jack can push a 42x48 pallet load straight onto a ground-level deck. No forklift required at the pickup point.
Forklifts and Skid Steers
Best: Tilt deckover for anything under 10,000 lbs, or heavier-rated equipment trailers for larger units. Details in the forklift and scissor lift guide.
Motorcycles and Small ATVs
Best: Utility with ramp. High clearance, low weight — no low-clearance solution needed. Simplest and cheapest option.
When You Genuinely Have a Choice
Some loads work on either the Air Tow or the tilt deckover. In those cases, decision factors are:
- Load weight: Under 9,000 lbs, Air Tow works. Over that, tilt deckover.
- Load width: Under 6.5 feet, Air Tow. Wider, tilt deckover.
- Load count: One item, Air Tow. Multiple items or long items, tilt deckover.
- Ease of loading: Air Tow's zero-degree approach beats even the tilt deckover for the easiest possible loading.
- Cost: Tilt deckover is cheaper per rental period ($120 vs $250 for 4 hours). If the tilt deckover works, it saves money.
Tow Vehicle Requirements
Both the Air Tow and the tilt deckover need 2 5/16" ball, 7-way plug, and a working brake controller. Half-ton pickup handles the Air Tow at full load; a 3/4-ton is safer for the tilt deckover near capacity. The standard utility works with a mid-size SUV or a compact pickup.
Pricing
- Air Tow: $250 / 4 hr, $300 / 24 hr, $720 / 3 days, $1,260 / week
- Tilt Deckover: $120 / 4 hr, $140 / 24 hr, $355 / 3 days, $735 / week
- 6x12 Utility: $40 / 4 hr, $60 / 24 hr
Pickup at W4637 Lakepark Drive, Fond du Lac, WI. No mileage limits. Text Nick at (920) 381-9770 with your equipment details and dates for a specific recommendation.
FAQ
How do I measure my equipment's approach angle?
Manufacturer specs sometimes list it. If not, park the machine on level ground, measure ground clearance at the front, and estimate the distance from that low point to the front tire's contact patch. That gives you the geometry.
Can I use plywood shims or wooden extensions on a utility trailer?
They work for very light loads and low speed but they're not a reliable solution for heavy or expensive equipment. Better to rent the right trailer.
Is the Air Tow always more expensive than the tilt deckover?
Yes, at the same rate period. But if the Air Tow saves you 30 minutes of loading and eliminates damage risk, it's usually worth it.
What about hauling in Wisconsin winters?
Both trailers operate reliably in Wisconsin cold. The Air Tow's air suspension is designed for temperature range. Just budget extra time for cold-weather startup and check tire pressures.
Can I book both trailers on the same day?
Sometimes. Fondy has 9 rentable trailers, so availability varies. Ask Nick to check the calendar.
What if my equipment is oversized?
The tilt deckover handles 8.5-foot loads. Anything wider needs an oversize permit and a different trailer setup — talk to Nick.
Is there anything the Air Tow can't handle?
Yes — anything over 6.5 feet wide, over 14 feet long, or over 9,885 lbs payload. Those loads go on the tilt deckover or heavier equipment trailers.
