Fox Valley renters searching "ground load trailer" almost always land here after failing to find one locally. The Appleton, Neenah, Menasha, and Kaukauna rental market carries the standard flatbeds and utilities but doesn't stock true ground-load trailers with air suspension. That's a real gap for anyone moving equipment that legitimately can't handle a ramp. Fondy Trailer Rentals in Fond du Lac, 30-40 minutes south on US 41, has the Air Tow — a full air-suspension ground-load trailer with the deck dropping to pavement height. This guide covers what ground-load specifically means, which Fox Valley loads need it, and how to route pickup efficiently.
Ground Load: The Term Defined
A ground-load trailer's deck lowers all the way to the ground. Zero-degree approach angle. No ramps needed. You can push, roll, or drive the load directly from pavement to deck without any incline. The Air Tow achieves this with an air-bag suspension system at each corner that raises and lowers the entire deck via wireless remote.
Compare that to the trailers you'll actually find in the Fox Valley rental market:
- Standard utility with fold-down ramps: deck at 22 inches, ramp angle 17-24 degrees. Fine for anything high-clearance, wrong for anything low or hard-tired.
- Enclosed cargo trailer: similar deck height, similar ramp. Rain-safe but not ground-load.
- Car hauler with drop tail: better than a utility ramp but still a real ramp angle. Fine for stock cars, still steep for lowered or non-running vehicles.
- Landscape trailer with gate: similar 22-inch deck, similar ramp angle.
None of those are ground-load. If your load needs true ground-level access, you're driving to Fondy.
Fox Valley Loads That Need Ground Load
Golf Carts
Hard tires plus weak brakes plus ramps equals loading problems. Fox Valley cottage and country-club owners rent ground-load trailers specifically for this. See the golf cart guide and the loading procedure.
Commercial Zero-Turn Mowers
Appleton-area landscape operators with 60"-72" mowers benefit enormously from ground load. Low deck cutting heights that scrape on ramps roll on flat with zero drama. See the zero-turn guide.
Scissor Lifts and Compact Lifts
Genie GS-1930, JLG 1930ES, Skyjack SJIII 3219, and similar compact platform lifts sit low and hate ramp angles. Ground load is the right answer.
Pallet-Based Loads
Pallet jacks can't climb ramps. If your load lives on a pallet and you don't have a forklift at both ends, a ground-load trailer is the only trailer that works.
Non-Running Vehicles
Dead cars, project cars, parts cars. Winching up a ramp is stressful and risky. Pushing onto a flat ground-level deck is genuinely easy.
Safes, Vending Machines, HVAC Compressors
Top-heavy rectangular loads that tip if you try to roll them up a ramp. Ground load eliminates the tipping vector entirely. Details in the safe moving guide and vending machine guide.
Not every load needs ground load. A running truck, an ATV, a snowmobile, a residential mower on turf tires — these load fine on any Fox Valley rental utility. Save the drive to Fondy for the loads that actually can't handle a ramp.
Route from Fox Valley to Fondy
Drive Times
- Central Appleton: 35-40 min
- Neenah: 25-30 min
- Menasha: 30-35 min
- Kaukauna and Kimberly: 40-45 min
- Grand Chute: 30-35 min
Route
US 41 south from any Fox Valley starting point. Fondy is at W4637 Lakepark Drive, Fond du Lac, WI — east side of Fond du Lac. Exit 41 at Highway 23 or the FDL exits and head east.
Fuel and Time Planning
Half-ton pickup pulling the loaded Air Tow gets 10-12 MPG. Fill before or after pickup. Round-trip drive adds about an hour to your rental clock — easily absorbed by the 24-hour window.

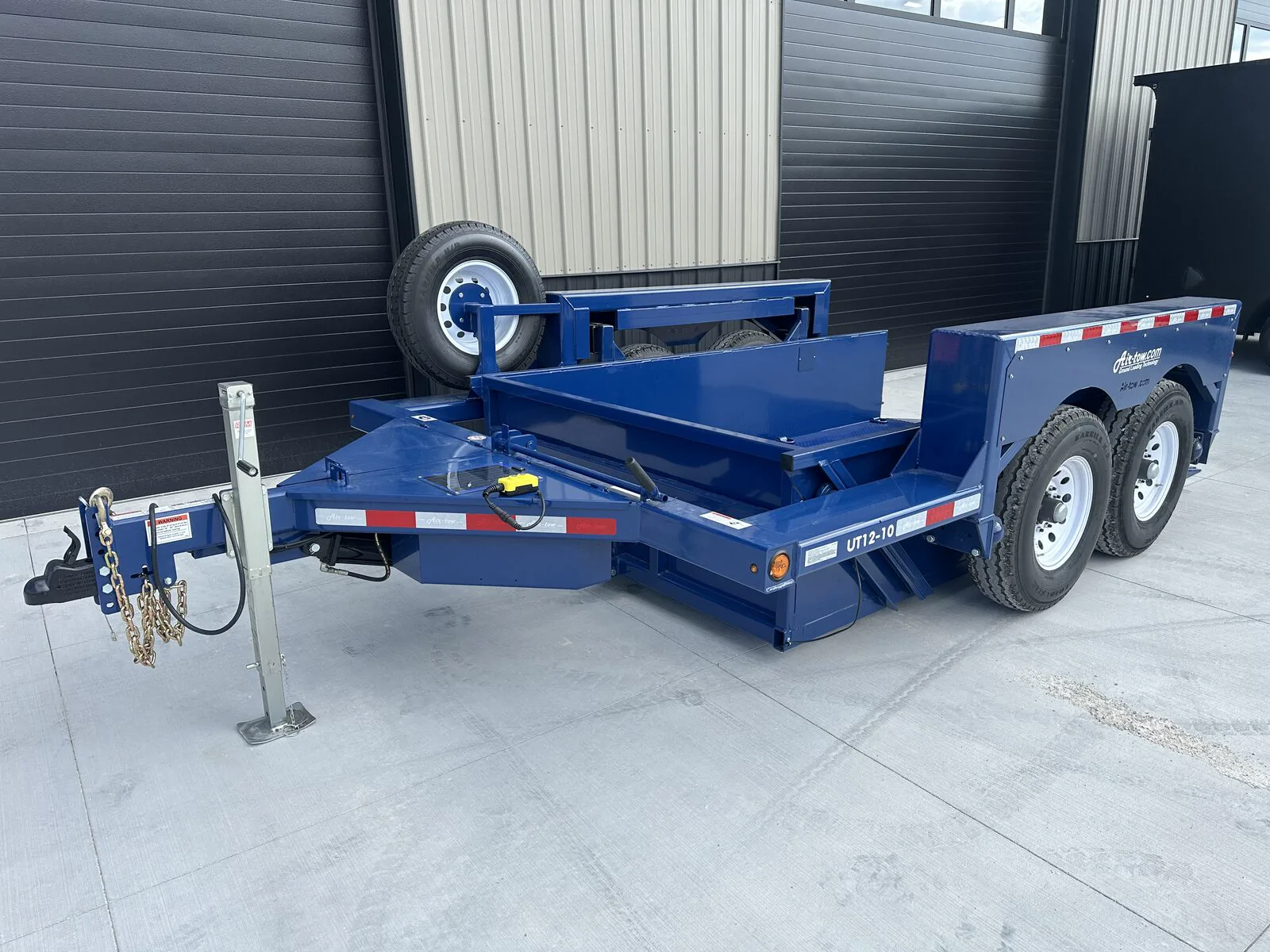

The Air Tow Specs
- GVWR: 13,535 lbs
- Empty: 3,650 lbs
- Payload: 9,885 lbs
- Deck: approximately 6.5 x 14 feet
- Electric brakes, 2 5/16" ball, 7-way plug
- Wireless-remote air suspension
- Wheel nets, straps, chains, chocks, spare tire included
Pricing
- $250 / 4 hours
- $300 / 24 hours (most common Fox Valley booking)
- $720 / 3 days
- $1,260 / 1 week
No mileage limits. Bluetooth brake controller rental available. Text Nick at (920) 381-9770 with your load details and dates.
FAQ
How do I know if I need a ground-load trailer vs a regular utility?
Two-part test: Does your load have hard tires or low ground clearance? Is it top-heavy or on a pallet? If yes to either, ground load. If no to both, a regular utility from any local Fox Valley rental works fine.
Is the Air Tow the same as a drop deck?
Functionally equivalent for rental purposes. Air Tow is the most extreme form of drop deck — deck goes all the way to ground level.
Can I load two items at once?
Depends on their combined size and weight. Two golf carts side-by-side fit; two commercial mowers do not. Text Nick with the specifics.
How far ahead do I need to book?
3-5 days for summer weekends. Shorter notice usually works for weekdays and off-season.
What about tow vehicle wiring?
7-way plug is required (the air suspension needs 12V power from the tow vehicle). Most modern half-ton and larger pickups have this built in. Older trucks may need an adapter or a wiring upgrade.
What if my load is bigger than the Air Tow can handle?
The tilt deckover is Fondy's larger option — 10,000 lb payload, 8.5 x 24 foot deck. Not quite ground-load but very close, with hydraulic tilt.
Does Fondy deliver to the Fox Valley?
No. Pickup only, at the Fond du Lac location so Nick can walk through the trailer setup properly.
Ground Load in the Fox Valley: When It Actually Matters
Ground load rentals attract a specific renter profile in the Appleton, Neenah, Menasha, Kaukauna, and Fond du Lac corridor. Manufacturing shops move pallet loads or small production equipment between facilities without a shipping container. Farmers move older tractors that predate quick-attach hydraulics. Small businesses relocate specialty equipment like commercial ovens, industrial mixers, or CNC accessories. Homeowners move riding mowers, garden tractors, or lowered vehicles to service shops. The common thread is a load that resists a standard trailer ramp.
What Ground Load Actually Costs vs Standard Rental
The Air Tow at Fondy is priced at $250 for 4 hours, $300 for 24 hours, $720 for 3 days, and $1,260 for a full week. The standard utility trailer runs $40 for 4 hours. For jobs where a standard trailer works, the utility is the right rental. For jobs where it does not — low clearance, no drive-on capability, or heavy top-heavy cargo — the Air Tow's price is a small premium for a dramatically better tool. Compare it to the alternative: a commercial rollback tow at $150-250 per hour, or a jobsite delivery from an equipment company at similar rates. Renting the Air Tow yourself is nearly always cheaper if you are handling more than one load or a full day of work.
Rental Day: What Happens in Fond du Lac
All Fondy pickups happen at W4637 Lakepark Drive by appointment. Nick meets you at the lot, walks through the trailer, confirms the ball, wiring, and safety chain setup on your tow vehicle, and hands over the tie-down kit. Typical checkout takes 15-20 minutes for a first-time renter. Return is the same location. No mileage limits, so a run from Fond du Lac to Neenah, Appleton, or as far as Green Bay is the same rate. Text Nick at (920) 381-9770 with your equipment specs and dates and he will confirm the right trailer.
